SWK ZIP Charcoal M392

Ref:

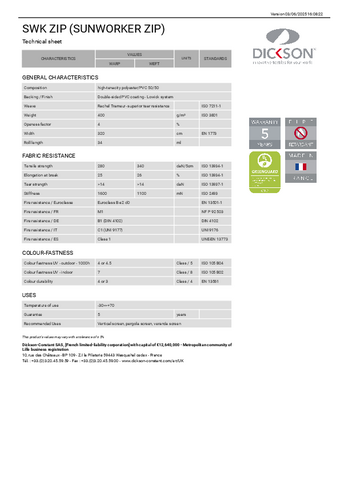

See technical data

Width 320 cm

Ref:

See technical data

Other available colours

The range SWK ZIP

SWK ZIP embodies the new generation of microperforated screen fabric designed specifically for large ZIP systems. Featuring excellent dimensional stability thanks to innovative Rachel Trameur weave, this fabric is perfectly suited to vertical awnings for bays and pergolas, ensuring impeccable flatness. With its 4% opening ratio, it blocks up to 96% of heat and UV rays, and reduces interior temperatures by up to 7°C.

We also recommend

Orchestra Charcoal tweed 7330

From

€28.87 Excl. VAT/lm Public price

Explore

Order a sample

Orchestra Ardoise 8203

From

€28.87 Excl. VAT/lm Public price

Explore

Order a sample

Orchestra Basalte Chiné U095

From

€28.87 Excl. VAT/lm Public price

Explore

Order a sample

Orchestra Carbone U171

From

€28.87 Excl. VAT/lm Public price

Explore

Order a sample

Orchestra Macadam Tweed U373

From

€28.87 Excl. VAT/lm Public price

Explore

Order a sample

Orchestra Acier Piqué U406

From

€28.87 Excl. VAT/lm Public price

Explore

Order a sample

Orchestra Naples Grey D113

From

€28.87 Excl. VAT/lm Public price

Explore

Order a sample

Orchestra Naples Dark grey D308

From

€28.87 Excl. VAT/lm Public price

Explore

Order a sample

Free delivery

Select a format from the choices offered

Qty

Order a sample

Free delivery

Select a format from the choices offered

Qty

Calculate the thermal comfort of a Dickson awning fabric

Your glazing

The glazing’s U value

The glazing’s G value

Glazing D : Double reflective glazing, 4 + 16 + 4, low-emission layer on side 2 (interior side of exterior glass), Argon fill

Without solar protection, your glazing alone blocks 68% of solar energy.

Your glazing and an interior solar protection system block 70% of solar heat.

Your glazing and an exterior solar protection system block 91% of solar heat.

When fitted with this system, your thermal comfort is in Class 4

The NF EN 14501 standard indicates that when more than 35% of solar heat is transmitted, the protection level is low. But when it's between 15% and 10% or lower, the window + fabric combination becomes very efficient protection against heat inside a room.

These calculations were made according to the standard 14501.

Class	g_tot	Efficiency
0	1.00 ≥ g_tot ≥ 0.50	Very low efficiency
1	0.50 > g_tot ≥ 0.35	Low efficiency
2	0.35 > g_tot ≥ 0.15	Moderately efficient
3	0.15 > g_tot ≥ 0.10	Efficient
4	0.10 > g_tot ≥ 0.00	Very efficient

Note: The calculation assumes the fabric is placed parallel to glazing or at a maximum angle of 30° with glazing. This calculation remains a good estimate for a folding-arm awning.
